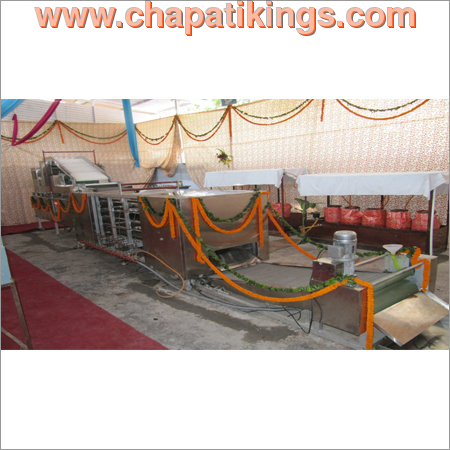

Automatic Chapati Making Machine Sheet Cutting Model

Features

• Less consumption of gas
• Durable
• Low maintenance cost


Specifications

• Size of machine will be 4.0' x 19' x 6'.
• Power required is 3.0 Kw Three phase.
• Gas consumption will be approximately 12Kg/ Hr aprox.
• Size of chapatti will be 6".
• Thickness of chapatti is adjustable from 1.5 to 3 mm.
• Machine will be fitted with aluminum body Italian gearbox & Motors.
• Outer covering is of stainless steel with rock wool insulation.
• Machine Frame will be painted or coated to prevent rusting.
• Dry atta sprinkler is provided.
• All the Dough touching material is food grade like stainless steel rollers, Polyurethane belt Conyers & Stainless steel tawa.
• Ac frequency drive is provided to control the speed of machine to control the quality & quantity of chapatti.
• System is also provided enabling switching ON/OFF the sheeter unit to avoid wastage during low temperature of the oven.
• Salonide valve is provided to automatic shutting down of gas burners during power failure.
• Ignition of the oven burners is controlled from separate switch provided on the control panel.
• The baking oven is fitted with canopy which removes extra heat from the oven to improve the quality of chapatti.
• Cleaning of machine is easy as all the dough touching parts are made of stainless steel and PU. Thus all these parts can be cleaned with wet cloth.
